Air Handling Units
Air Handling Unit
Air Handling Unit
- Electro-galvanized steel,insulated cabinet with chilled water coil.

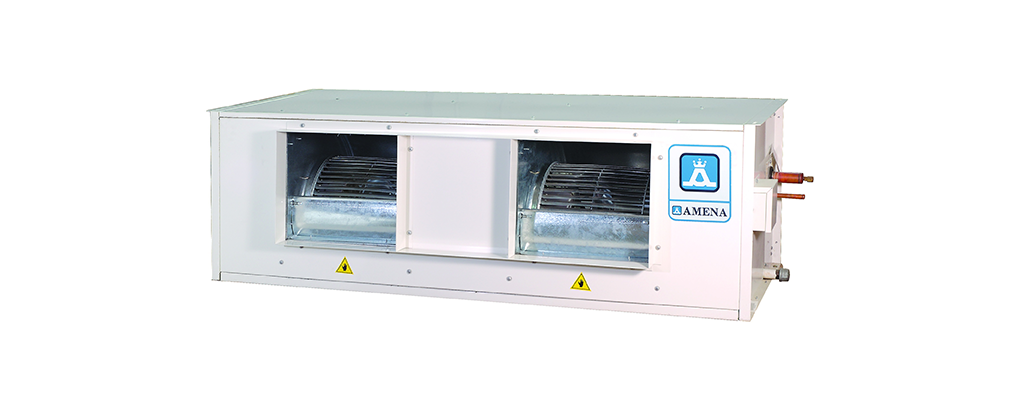

- Double inlet,double width forward curved centrifugal type blower wheel with adjustable belt drive for models KAHV(H) and direct drive for models AHD.
- Thermal overload for fan motor.
- The coil is pressurized with 150 PSIG for leak check before installation.
- The unit can be arranged in vertical or horizontal position ,in case of model KAHV(H) ,with either front ,rear,upward or downward supplyair discharge.
- 7/8" aluminium filters.oversized fan motor for high stataic pressure applications( optional).
